EN1888-2018 LAB TESTING EQUIPMENT BABY STROLLER WHEEL ABRASION TESTER

Name: EN18882018 LAB TESTING EQUIPMENT BABY STROLLER WHEEL ABRASION TESTER
Brand: SKYLINE
Price: 1 USD

Wholesale EN1888-2018 LAB TESTING EQUIPMENT BABY STROLLER WHEEL ABRASION TESTER from china suppliers

Brand Name : SKYLINE

Place of Origin : China

MOQ : 1UNIT

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10pcs/month

Model Number : SL-TBS014

Certification : CE

Price : Negoitable

Delivery Time : 15 working days

Packaging Details : Plywood case

SKYLINE : Baby Stroller Wheel Abrasion Tester

Test Speed : 5km/h±0.1km/h

Standards : EN1888-2018

Machine Size : 3300*1400*1900mm

Weight : 600kg

Bearing Load : 100LB

Contact Now

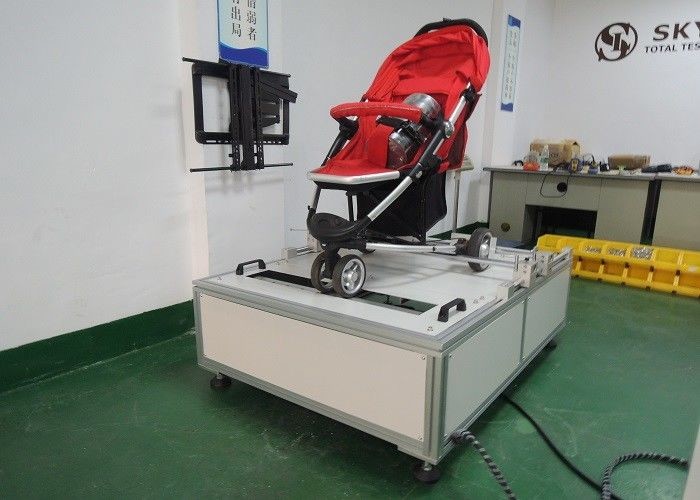

EN1888-2018 Baby Stroller Wheel Abrasion Testing Machine

Product Description

It is for testing the stroller wheel performance on the harmful roadway,after doing the repeat impact test,examine the wheel change the Shape or damage. (Base on the EN-1888-2018 requirement/Customer specified requirement) User can preset speed and cycle quantity in the PLC interface.

Application

This wheel abrasion conditioning shall be performed after the irregular surface test (8.10.3)

Abrasion conditioning shall be performed on a drum speed of (5+/-0.1)km/h 3.100,000times.

Key Specifications

Experiment work	One station
Test speed	5km/h±0.1km/h
Drive horsepower	AC380V3 diameter3HP
Up and Down Pitch	Max.300mm
Effective width	Max.1000mm
Test surface	Sand paper 80 #
Bearing load	Max.100LB
Power	AC380V, 5kw
Machine size	330014001900mm
Weight	600kg
Shape of impact block Trapezium, halfarc or specified.
